Operational |
|
Light Source |
Visible Laser Diode 650 nm ± 10 nm |
Visual Indicators |
Steady Blue = ready to scan; Flashing Blue = good read; Amber = scale at zero; 7-segment display = diagnostic indicator |
Host System Interfaces |
USB, RS232, IBM46xx (RS485) |
Auxiliary Ports |
RS232: Secondary scanner, EAS |
Mechanical |
|
Product |
Length Width Depth (Below Counter) Height (Above Counter) |

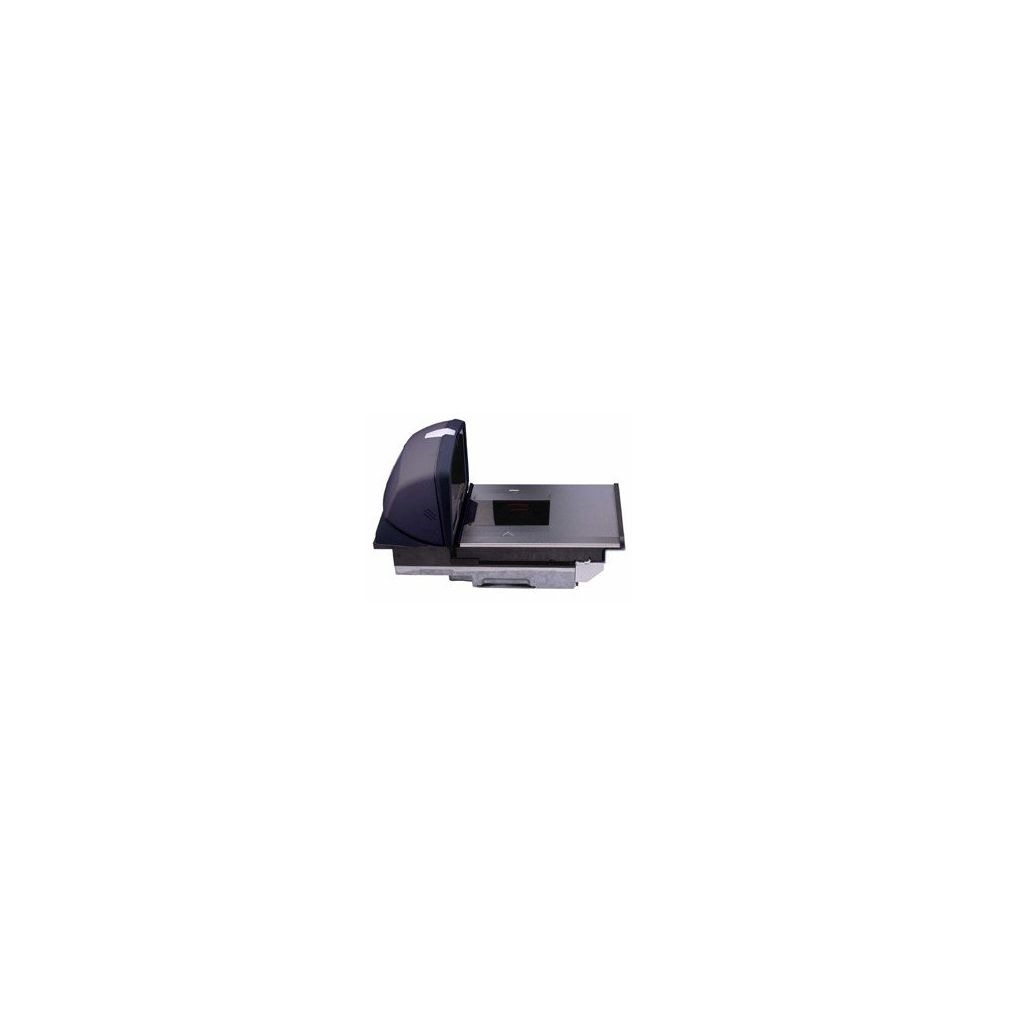

2420 (compact scanner with scale) |
399 mm (15.7?) 292 mm (11.5?) 100 mm (4?) 130 mm (5.1?) |
2421 (compact scanner only) |
399 mm (15.7?) 292 mm (11.5?) 100 mm (4?) 130 mm (5.1?) |
2422 (sub compact scanner only) |
353 mm (13.9?) 292 mm (11.5?) 100 mm (4?) 130 mm (5.1?) |
2430 (full-size scanner with scale) |
508 mm (20?) 292 mm (11.5?) 100 mm (4?) 130 mm (5.1?) |
2431 (full-size scanner only) |
508 mm (20?) 292 mm (11.5?) 100 mm (4?) 130 mm (5.1?) |
Electrical |
|
Input Voltage |
5.2 VDC ± 0.25 VDC; 12 VDC ± 0.5 VDC |
Operating Power |
11 W (1670 mA @ 5.2 V; 190 mA @ 12 V) |
Standby Power |
5.5 W (610 mA @ 5.2 V; 190 mA @ 12 V) |
Environmental |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Storage Temperature |
-40°C to 60°C (-40°F to 140°F) |
Humidity |
5% to 95% relative humidity, non-condensing |
Environmental Sealing |
Sealed to resist airborne particulate contaminants |
Light Levels |
4842 Lux |
Scan Performance |
|
Depth of Scan Field (Horiz/Vert) |
H: 0 mm - 100 mm (0?-4?); V: 0 mm - 216 mm (0?-8.5?) for 0.33 mm (13 mil) bar code |
Sides Read/Scan Zone |
5 / 360° |
Scan Pattern |
Omnidirectional: 54 scan lines (Horizontal: 38 scan lines; Vertical: 16 scan lines) |
Scan Speed |
5400 scan lines per second |
Resolution |
4.5 mil (0.114 mm) |
Print Contrast |
35% minimum reflectance difference |
Decode Capability |
Reads standard 1D and GS1 DataBar symbologies |
