| Specifications |
| Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A
record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP,
LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Network Interfaces |
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Graphic Display |
2.4 inch (320x240) TFT color LCD |
| Feature Keys |
6line keys with up to 3 SIP accounts, 4 XML programmable context
sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys
for:MESSAGE(with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD,
HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Auxiliary Port |
RJ9 headset jack (allowing EHS with Plantronics headsets) |
| Voice Codecs and Capabilities |
Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723,
iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO) |
| Telephony Features |
Hold, transfer, forward, 3-way conference, call park, call pickup,
shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable
phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to
1000 records), XML customization of screen, off-hook auto dial, auto
answer, click-to-dial, flexible dial plan, hot-desking, personalized
music ringtones and music on hold, server redundancy and fail-over |
| HD Audio |
Yes, HD handset and speakerphone with support for wideband audio |
| Base Stand |
Yes, 2 angle positions available, Wall Mountable
(Wall Mount *sold separately) |
| QoS |
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security |
User and administrator level passwords, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, SRTP, TLS,
802.1x media access control, secure boot. |
| Multi-language |
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more |
| Upgrade/Provisioning |
Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file. |
| Power & Green Energy Efficiency |
Universal power adapter included:
Input:100-240V ; Output: +5V, 0.6A ;
Integrated Power-over-Ethernet(802.3af)
Max power consumption 3W(power adapter) or 3.8W(PoE) |
| Temperature and Humidity |
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing |
| Package Content |

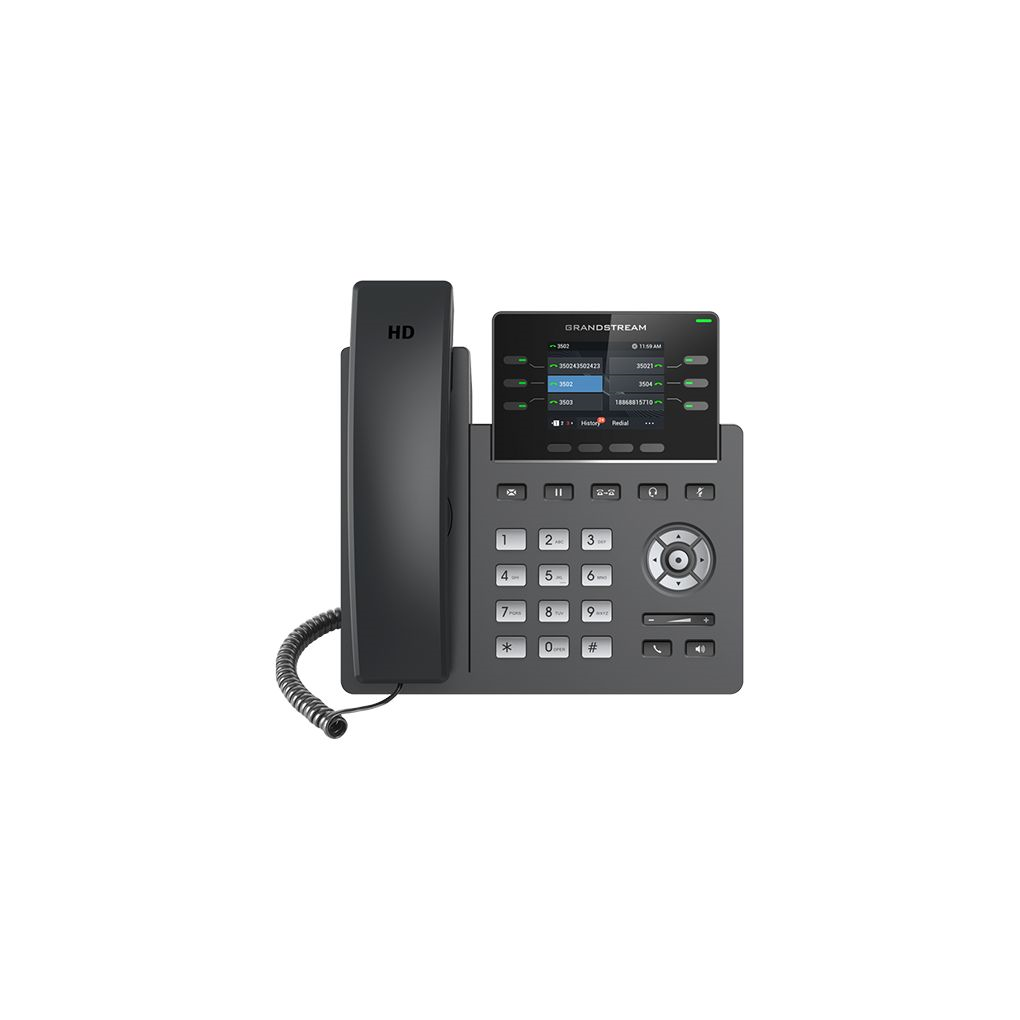

GRP2613 phone,
Handset with cord,
Phone stand,
5V power adapter,
Network cable,
Quick Installation Guide,
GPL license |
| Dimensions |
203mm x 193mm x 52.1mm |
| Compliance |
FCC: Part 15 Class B; FCC Part 68 HAC
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1
RCM: AS/NZS CISPR32;AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 62368.1; AS/CA S004 |
