Specifications |
Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A
record, SRV, NAPTR), DHCP, PPPoE,TELNET, TFTP, NTP, STUN, SIMPLE, LLDP,
LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
Network Interfaces |
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
Graphic Display |
480x272 TFT color LCD |
Bluetooth |
Yes, Bluetooth V2.1 |
Feature Keys |
4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys, 11
dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK,
TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE,
VOL+, VOL- |
Voice Codecs |
Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), and
iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO) |
Auxiliary Ports |
RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port |
Telephony Features |
Hold, transfer, forward, 5-way conference, call park, call pickup,
shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable
phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to
500 records), customization of screen, off-hook auto dial, auto answer,
click-to-dial, flexible dial plan, hot desking, personalized music
ringtones and music on hold, server redundancy and fail-over |
Sample Applications |
Weather, currency, news, XML |
HD audio |
Yes, both on handset and speakerphone |
Extension Module |
Yes, can power up to 4 GXP2200EXT modules which features a 128x384
graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation
keys, and less than 1.2W power consumption per unit. |
Base Stand/Wall Mountable |
Yes, allow 2 angle positions |
QoS |
Layer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security |
User and administrator level passwords, MD5 and MD5-sess based
authentication, AES based secure configuration file, SRTP, TLS, 802.1x
media access control |
Multi-language |
English, Arabic, Chinese, Croatian, Czech, Dutch, German, French,
Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese,
Russian, Slovenia, Spanish, Turkish |
Upgrade/Provisioning |
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file |
Power & Green Energy Efficiency |
Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs ) |
Dimensions |
228mm (W) x 206mm (L) x 46.5mm (H) |
Temperature and Humidity |
Operation: 0°C to 40°C Humidity: 10% to 90% Non-condensing |
Package Content |

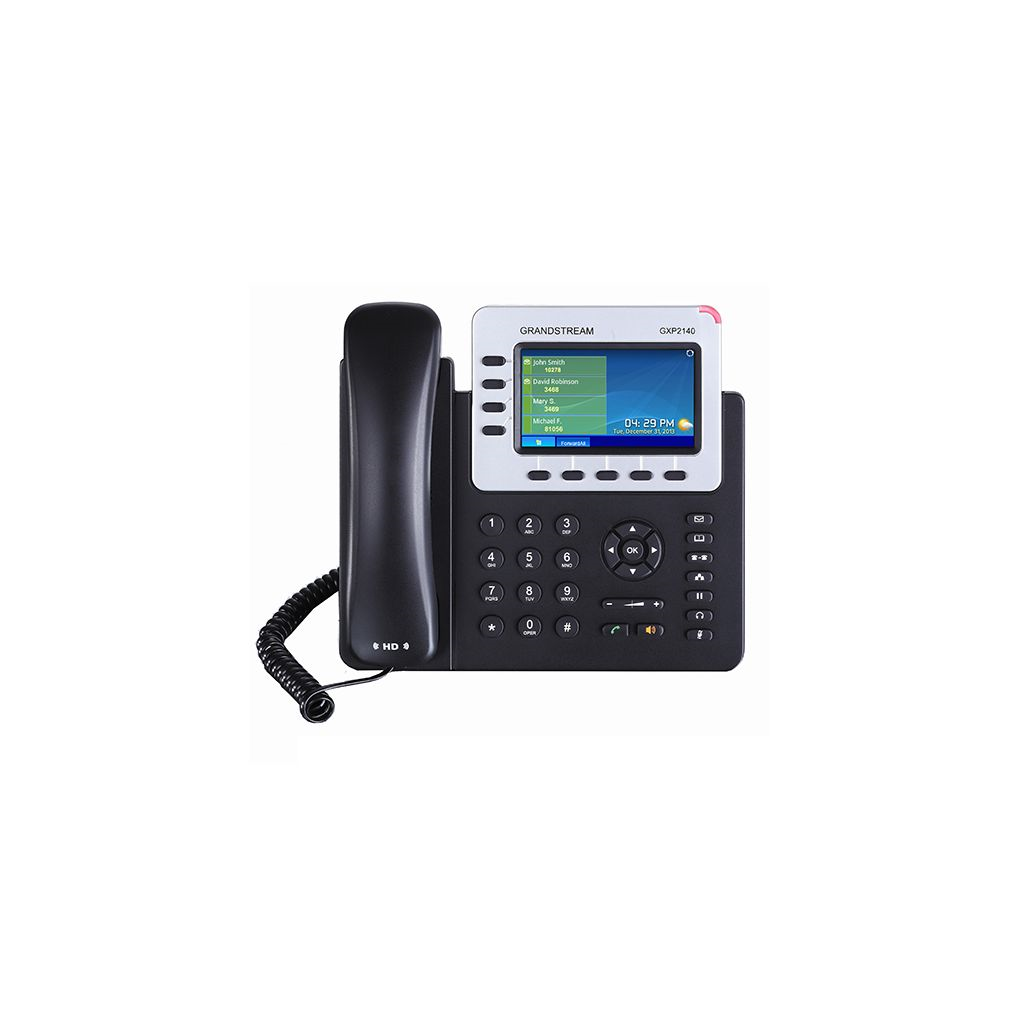

GXP2140 phone, Handset with cord, Base stand, Universal power supply, Network cable, Quick Start Guide |
Compliance |
FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2,
EN61000-3- 3, EN 60950-1, EN62479 AS/NZS CISPR 22 Class B, AS/NZS CISPR
24, RoHS; UL 60950 (power adapter) |
