Specifications |
Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A
record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP,
LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
Network Interfaces |
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
Graphic Display |
320x240 TFT color LCD |
Bluetooth |
Yes, integrated |
Feature Keys |
8 line keys with up to 4 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys,
11 dedicated function keys for: MESSAGE (with LED indicator),
PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL,
SPEAKERPHONE, VOL+, VOL |
Voice Codec |
Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO) |
Auxiliary Ports |
RJ9 headset jack (allowing EHS with Plantronics headsets) |
Telephony Features |
Hold, transfer, forward, 4-way conference, call park, call pickup,
shared-callappearance (SCA)/bridged-line-appearance(BLA), downloadable
phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to
500 records), XML customization of screen, off-hook auto dial, auto
answer, click-to-dial, flexible dial plan, hot desking, personalized
music ringtones and music on hold, server redundancy and fail-over |
HD audio |
Yes, HD handset and speakerphone with support for wideband audio |
Base Stand |
Yes, 2 angle positions available, Wall Mountable |
QoS |
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security |
User and administrator level passwords, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, SRTP, TLS,
802.1x media access control |
Multi-language |
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese |
Upgrade/Provisioning |
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file |
Power & Green Energy Efficiency |
Universal power adapter included: Input:100-240V; Output: +12V, 0.5A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6.4W (power adapter) or 6.49W (PoE) |
Dimensions |
201mm(W) x 193mm(L) x 85mm(H) |
Temperature and Humidity |
Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
Package Content |

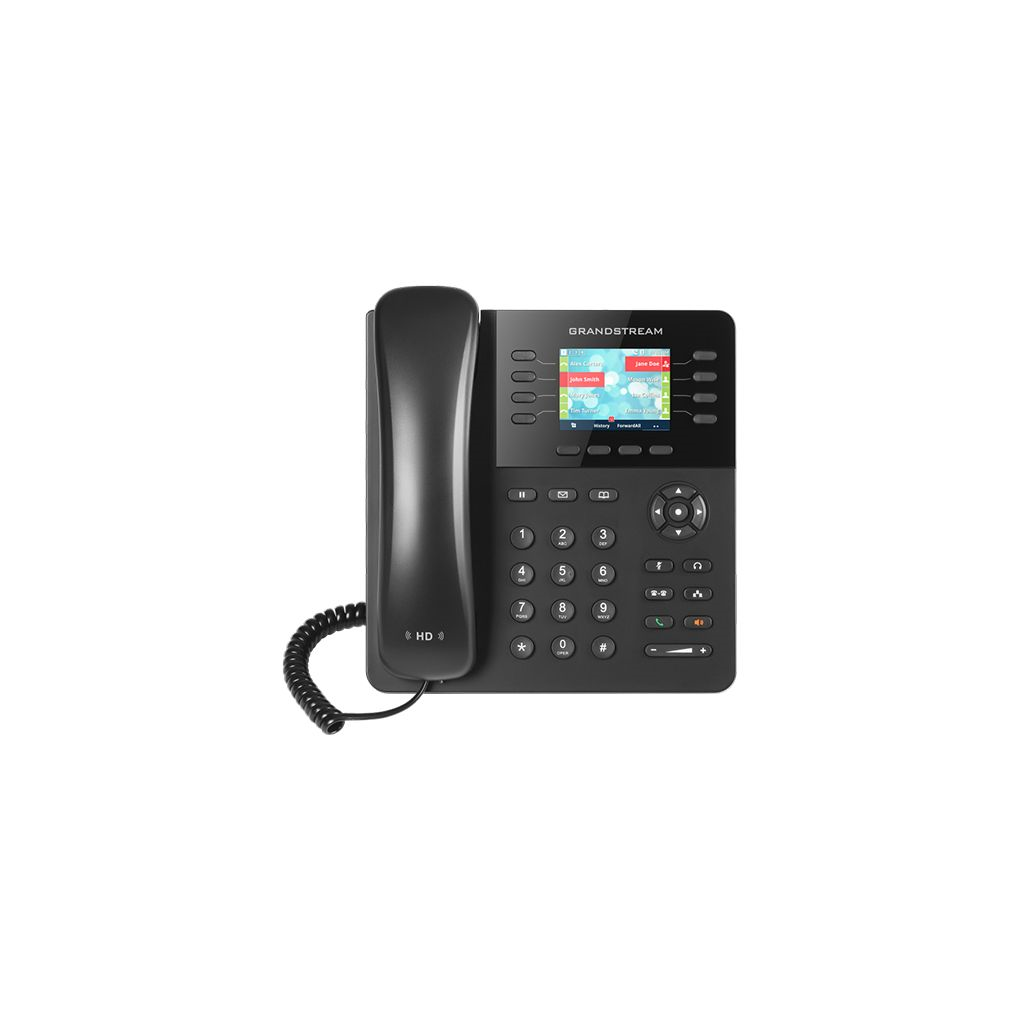

GXP2135 phone, Handset with cord, Base stand, Universal power supply, Nnetwork cable, Quick Installation Guide, GPL license |
Compliance |
FCC: Part 15 (CFR 47) Class B CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1 |
