Specifications |
Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS,
ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP,
STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
Network Interfaces |
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
Graphic Display |
2.8 inch (320x240) TFT color LCD |
Bluetooth |
Yes, Bluetooth V2.1 |
Feature Keys |
3 line keys with up to 3 SIP accounts, 8 speed-dial/BLF extension keys with dual-color LED, 4 programmable context sensitive softkeys, 5 navigation/menu keys, 11
dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK,
TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE,
VOL+, VOL- |
Voice Codecs |
Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), in-band and out-of band DTMF (in audio, RFC2833, SIP INFO) |
Auxiliary Ports |
RJ9 headset jack (allowing EHS with Plantronics headsets), USB |
Telephony Features |
Hold, transfer, forward, 4-way audio conference, call
park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance
(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call
waiting, call log (up to 500 records), customization of screen, off-hook
auto dial, auto answer, click-to-dial, flexible dial plan, hot desking,
personalized music ringtones and music on hold, server redundancy and
fail-over |
Sample Applications |
Weather, currency, news, XML |
HD Audio |
Yes, both on handset and speakerphone |
Base Stand/Wall Mountable |
Yes, allow 2 angle positions |
QoS |
Layer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security |
User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control |
Multi-language |
English, Arabic, Chinese, Croatian, Czech,
Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean,
Polish, Portuguese, Russian, Slovenia, Spanish, Turkish |
Upgrade/Provisioning |
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file |
Power & Green Energy Efficiency |
Universal power adapter included: Input: 100-240VAC; Output: +12VDC, 0.5A (6W) Integrated PoE (Power-over-Ethernet) 802.3af, Class 2 |
Dimensions |
193mm (W) x 211mm (L) x 85mm (H) |
Temperature and Humidity |
0 ~ 40?C (32 ~ 104?F), 10 ~ 90% (non-condensing) |
Package Content |

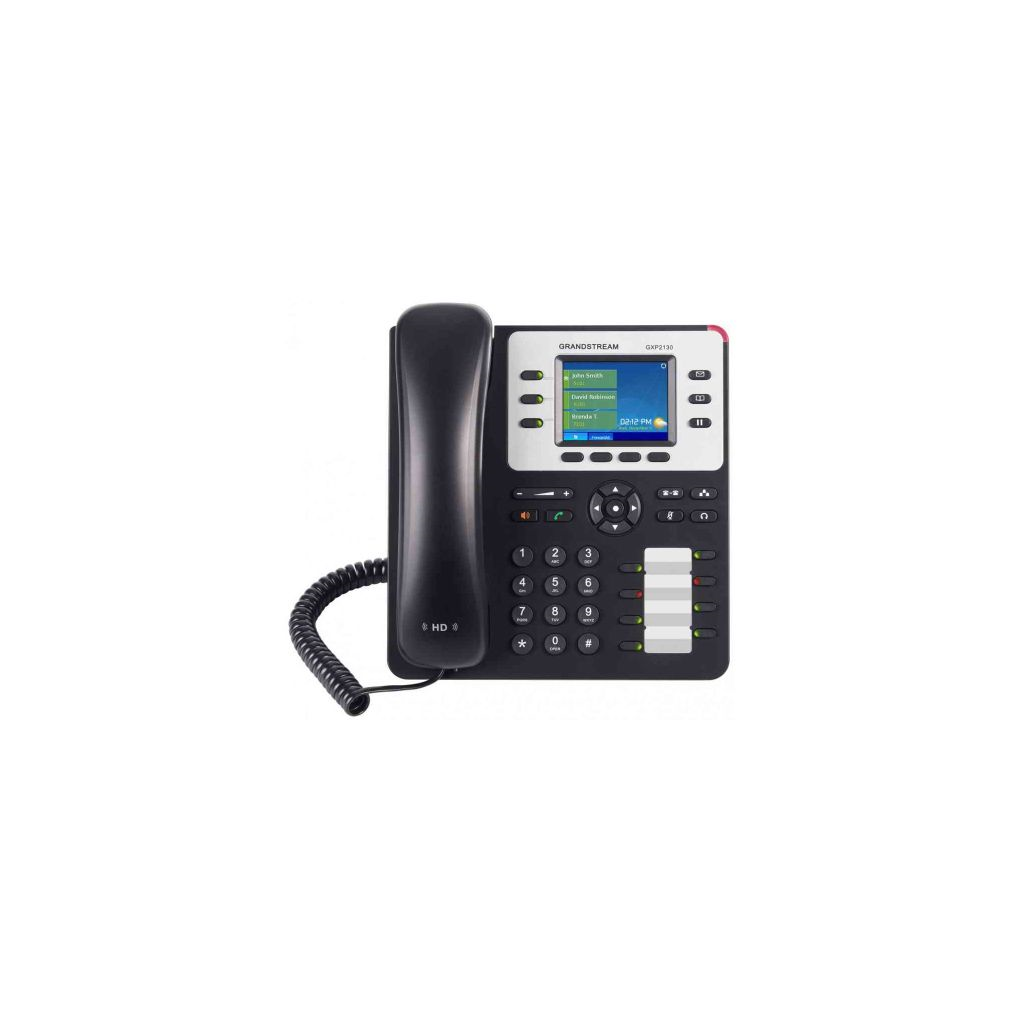

GXP2130 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide |
Compliance |
FCC Part 15 ClassB, EN55022 ClassB, EN61000-3-2, EN61000-3-3, EN55024, EN60950-1, EN62479 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950 |
