Specifications |
Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A
record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP,
LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
Network Interfaces |
Dual switched Ethernet ports with integrated PoE. Auto-sensing 10/100/1000Mbps |
Graphic Display |
200 x 80 pixel backlit LCD display |
Bluetooth |
No |
Feature Keys |
8 line keys with up to 4 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 8 dedicated function keys for: PHONEBOOK, TRANSFER, CONFERENCE, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOLUME |
Voice Codecs |
Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), G.723,
iLBC, OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO) |
Auxiliary Ports |
RJ9 headset jack (allowing EHS with Plantronics headsets), USB, and a
separate EHS port reserved for external EHS adapter in the future |
Telephony Features |
Hold, transfer, forward, 5-way conference, call park, call pickup,
sharedcall-appearance(SCA)/bridged-line-appearance(BLA), downloadable
phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 500
records), XML customization of screen, off-hook auto dial, auto answer,
click-to-dial, flexible dial plan, hot desking, personalized music
ringtones and music on hold, server redundancy and fail-over |
HD Audio |
Yes, HD handset and speakerphone with support for wideband audio |
Base Stand |
Yes, 2 angle positions available. Wall Mount stand sold separately |
QoS |
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security |
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support |
Multi-language |
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese |
Upgrade/Provisioning |
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file. |
Power & Green Energy Efficiency |
Universal power adapter included: Input:100-240V; Output: +5V, 1A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 5W |
Dimensions |
231mm(W) x 167mm(L) x 86mm(H) |
Temperature and Humidity |
Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
Package Content |

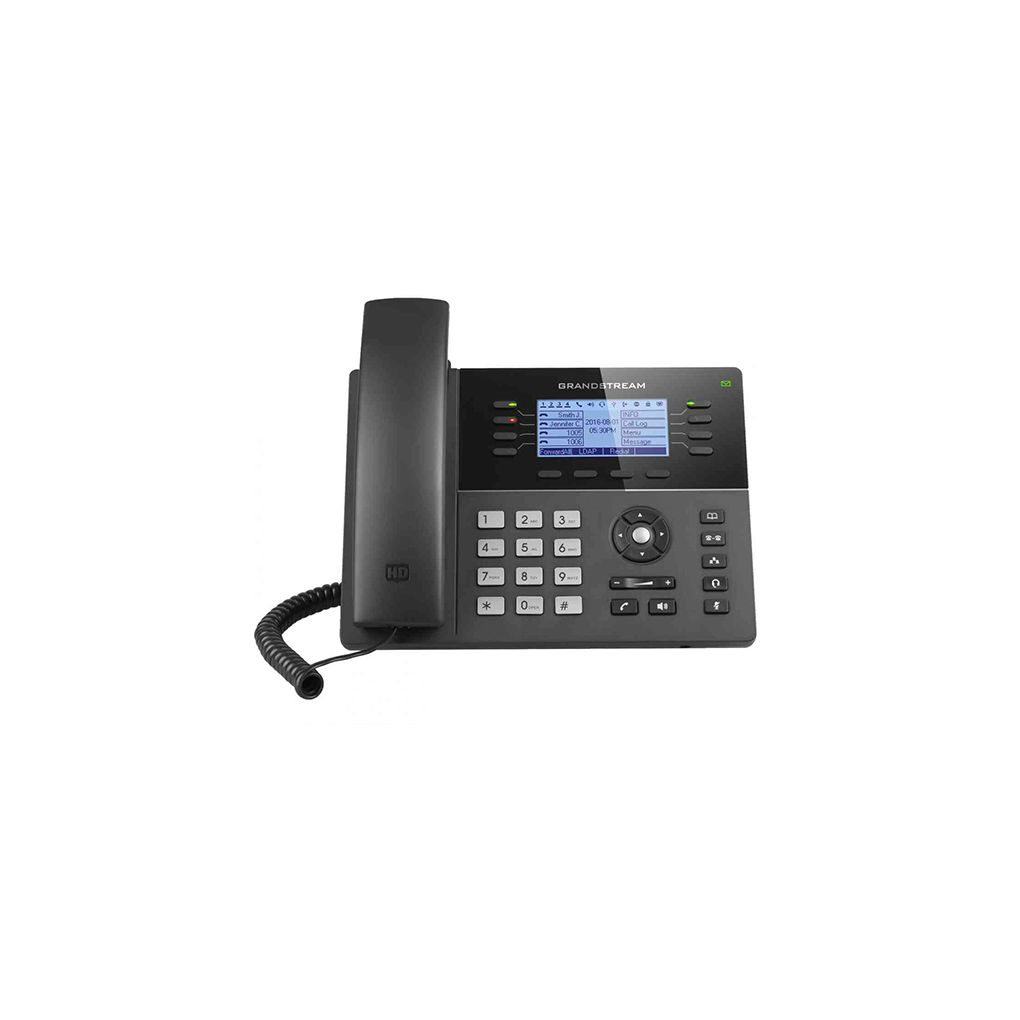

GXP1782 phone, Handset with cord, Base stand, Universal power supply, Network cable, Quick Installation Guide, GPL license |
Compliance |
FCC: Part 15 (CFR 47) Class B CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1 |
