| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE,TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR- 069, 802.1x, TLS, SRTP, IPv6 |
| Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Graphic Display | 480x272 TFT color LCD |
| Bluetooth | Yes, Bluetooth V2.1 |
| Feature Keys | 6 line keys with up to 6 SIP accounts,
24 speed-dial/BLF extension keys with dual-color LED,
5 programmable context sensitive softkeys,
5 navigation/menu keys,
11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET,MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Voice Codecs | Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), and iLBC,in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB |
| Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-ap- pearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customi- zation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redun- dancy and fail-over |
| Sample Applications | Weather, currency, news, XML |
| HD audio | Yes, both on handset and speakerphone |
| Base Stand/Wall Mountable | Yes, allow 2 angle positions |
| QoS | Layer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control |
| Multi-language | English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish |
| Upgrade/Provisioning | Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file |
| Power & Green Energy Efficiency | Universal power adapter included: Input: 100-240VAC;
Output: +12V, 1.0A
Integrated PoE (Power-over-Ethernet) 802.3af,
Max power consumption: 6W |
| Dimensions | 275.5mm (W) x 206mm (L) x 46.5mm (H) |
| Temperature and Humidity | Operation: 0°C to 40°C
Humidity: 10% to 90% Non-condensing |

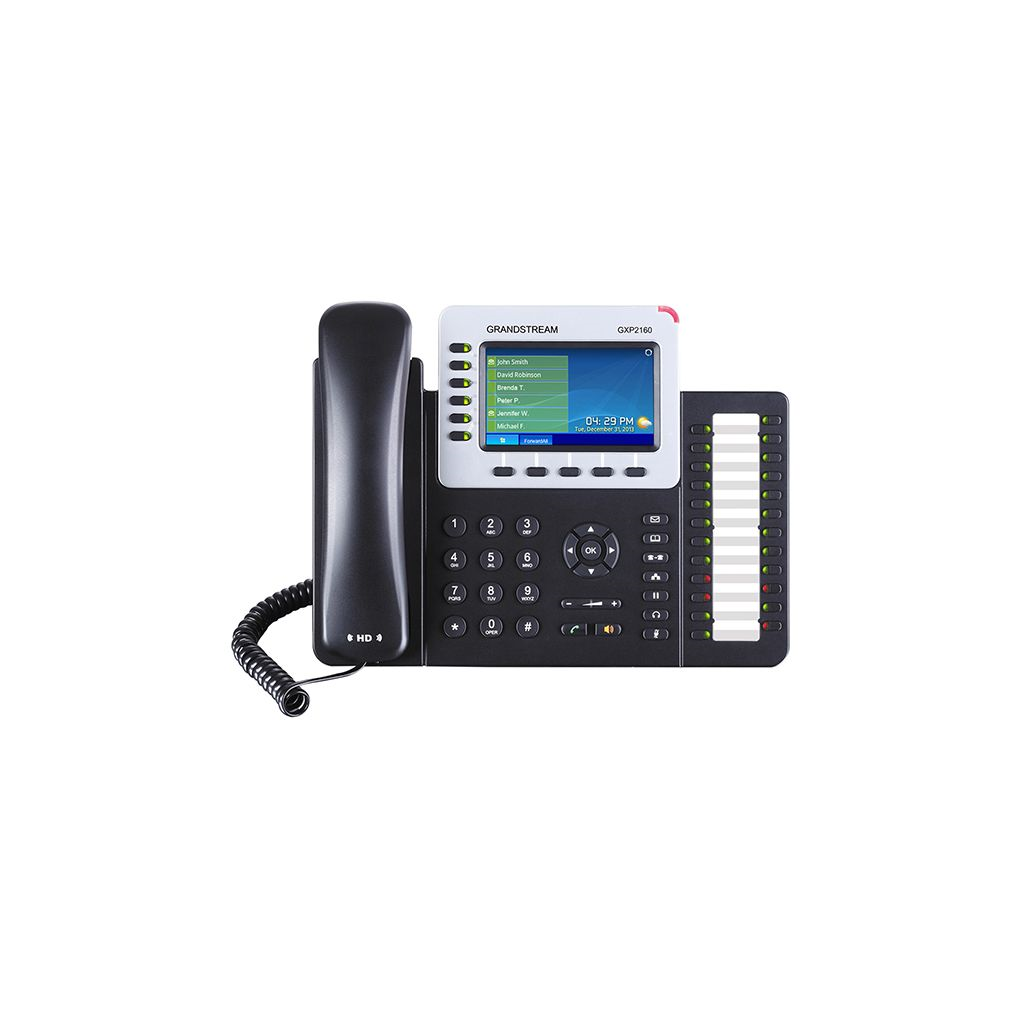

| Package Content | GXP2160 phone,
Handset with cord,
Base stand,
Universal power supply,
Network cable,
Quick Start Guide |
| Compliance | FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1, EN62479
AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter) |
