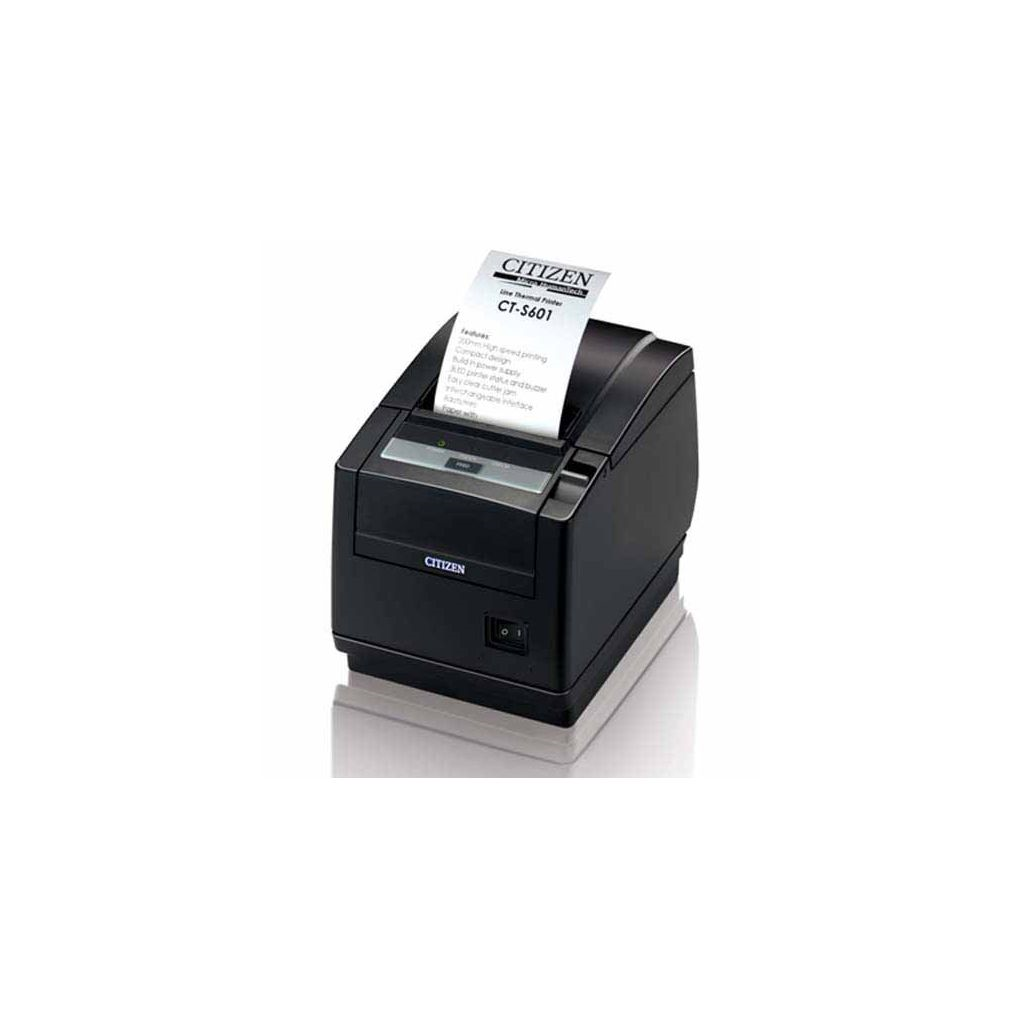

| Model | CT-S601 |
| Print width* | 80mm/640 dots, 72mm/576 dots, 64mm/512 dots, 54.5mm/436 dots, 54mm/432 dots, 52.5mm/420 dots, 48mm/384 dots, 45mm/360 dots, 48.75mm/390 dots, 68.25mm/546 dots |
| Dot density | 8 ? 8 dots / mm (203 dpi) |
| Printing speed | Max. 200 mm/sec, 1600 dots lines/sec. (fastest, print density 100%) |
| Number of print columns† | | Font | Maximum number of characters
(columns) | Dot configuration
(dots) | | 83mm | 80mm | 60mm | 58mm | | Font A | 53 | 48 | 36 | 35 | 12 ? 24 | | Font B | 71 | 64 | 48 | 46 | 9 ? 17 | | Font C | 80 | 72 | 54 | 52 | 8 ? 16 |
|
Character size
(W ? H)‡ | Font A: 1.50 ? 3.00 mm
Font B: 1.13 ? 2.13 mm
Font C: 1.00 ? 2.00 mm |
| Character type | Alphanumeric, International, PC437/850/852/857/858/860/863/864/865/866/WPC1252/Katakana/Thai code 18 |
| Operation panel | 3 LEDs, Feed button |
| User memory | 384 Kb (capable of storing user-defined characters and logos) |
| Barcode type | UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR (NW-7), CODE 93, PDF417, QR Code |
| Line spacing | 4.23mm (1/6 inch) (changeable using commands) |
| Paper roll | | Width | Paper roll: 83+0/-1 mm, 80+0/-1 mm, 60+0/-1 mm, 58 mm+0/-1 ? F 80 mm | | Thickness | 65 to 75µm (core tube diameter: inner 12mm / outer 18mm)
75 to 150µm (core tube diameter: inner 25.4mm / outer 32mm) |
|
| Interface | Serial (RS-232C compliant), Parallel (IEEE1284 compliant), USB, USB with hub, Ethernet, powered USB |
| External device port | Cash drawer kick-out |
| Buffer size | 4K bytes / 45 bytes |
| Pupply voltage | DC 24V ± 5% |
| Power consumption | Approx. 45 W (normal printing), 3W (standby) |
| Power source | Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC24 V, 2.1 A |
| Weight (approx.) | CT-S601S (Built-in power supply type): 2.0kg
CT-S601A (AC adaptor type): 1.6kg |
Outer dimensions
(W ? D ? H) | CT-S601S (Built-in power supply type): 145 ? 192 ? 148 mm
CT-S601A (AC adaptor type): 145 ? 192 ? 120 mm |
| Operating temperature and humidity | 5 to 45 °C, 10 to 90 % RH (no condensation) |
| Storage temperature and humidity | -20 to 60 °C, 10 to 90 % RH (no condensation) |
| Reliability | Print head life: 150 km, 200 million pulses (at normal temperature and humidity using recommended paper)
Auto cutter life: 2 million cuts (at normal temperature and humidity using recommended paper) |
Safety standards
| UL, C-UL |
