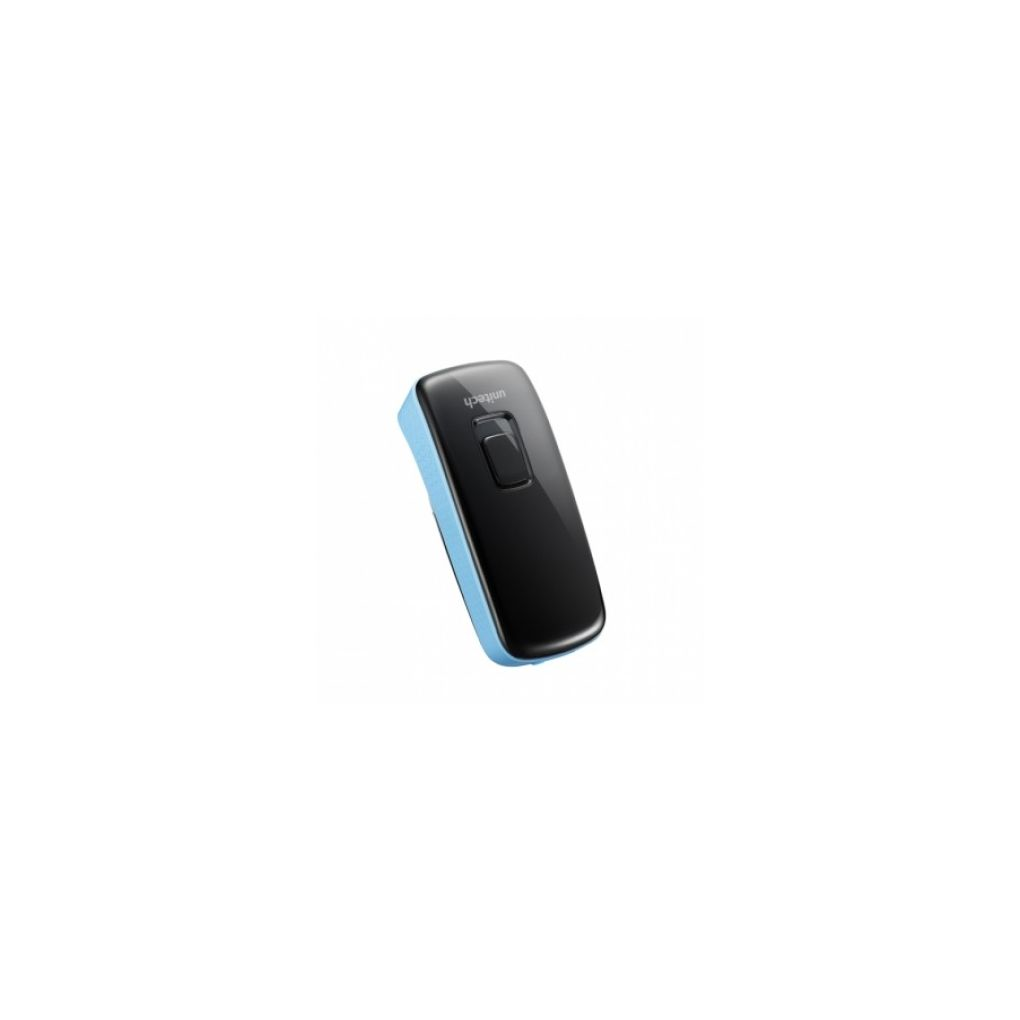

MS920 Advanced 2D Pocket imager
Παρόλο το μικρό του μέγεθος το MS920 διαβάζει 1D, 2D, QR CODE, και έχει δυνατότητα αποστολής δεδομένων ασύρματα έως 100 μέτρα σε ανοικτό χώρο!!!
Unitech MS920 is a new generation of wireless 2D barcode scanner that doubles the excellent decoding performance in a pocket-sized enclosure. Thanks to its compact & lightweight design for easy mobility, MS920 allows enterprises to simply scan and transmit 1D and 2D barcode in real time to the host wirelessly or to store scanned data in the built-in memory.
Optical & Performance
| Optical & Performance | Image Sensor, 752 x 480 pixels |
| Light Source | Illumination: Highly visible white LED
Aiming : 617 nm red LED |
| Max. Resolution | 1D codes 0.1 mm (4 mils)
2D codes 0.167 mm (6.6 mils) |
| Skew Angle | ±58 degrees |
| Pitch AngleSensor | ±86 degrees |
| Printing Contrast Scale | 30% |
| Motion Tolerance | 4 inches per second |
| Reading Distance(DOF PCS=100%) | Symbology | Density | Near | Far
Code 39, 4 mils | 6.0 cm | 18.0 cm
Code 39, 5 mils | 4.50 cm | 22.50 cm
Code 39, 20 mils | 6.00 cm | 64.00 cm
Code 39, 40 mils | 12.50 cm | 97.50 cm
-------------------------------------------------------
EAN/UPC, 13 mils | 4.5 cm | 41 cm
-------------------------------------------------------
DataMatrix, 7 mils | 6.5 cm | 15 cm
DataMatrix, 10 mils | 4.5 cm | 21 cm
DataMatrix, 15 mils | 4.7 cm | 31 cm
-------------------------------------------------------
PDF417, 6.6 mils | 5 cm | 18.2 cm
PDF417, 10 mils | 3.7 cm | 27.5 cm
PDF417, 15 mils | 4.5 cm | 40 cm
*=dependent on width of bar code |
Functionality
| Symbologies | 1D: EAN/UPC, GS1 Databar (limited
expanded & omni-directional), Code 39, Code 128,
UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/
Industrial and Standard 2 of 5, Codabar, Code 93/93i,
Code 11, MSI, Plessey, Telepen, 2D: Data Matrix, PDF417, Micro PDF 417,
Codablock, Maxicode, QR, Aztec
Postal: Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post |
| Operation Mode | Trigger Mode, Flash Mode, Continuous Mode, Buffer mode |
| Data Formatting | Prefix, Suffix, Code ID |
Electrical
| Operation Voltage | DC 3V to 5V |
| Current Consumption | Operation mode: 76.8mA |
| Battery Type | Rechargeable Lithium-ion battery |
| Battery Duration | 1100mAh |
| Battery Charging time | Fully charged in 4 hours |
| Operating Time | Over 13 hours ( 1 scan / 3 seconds) |
