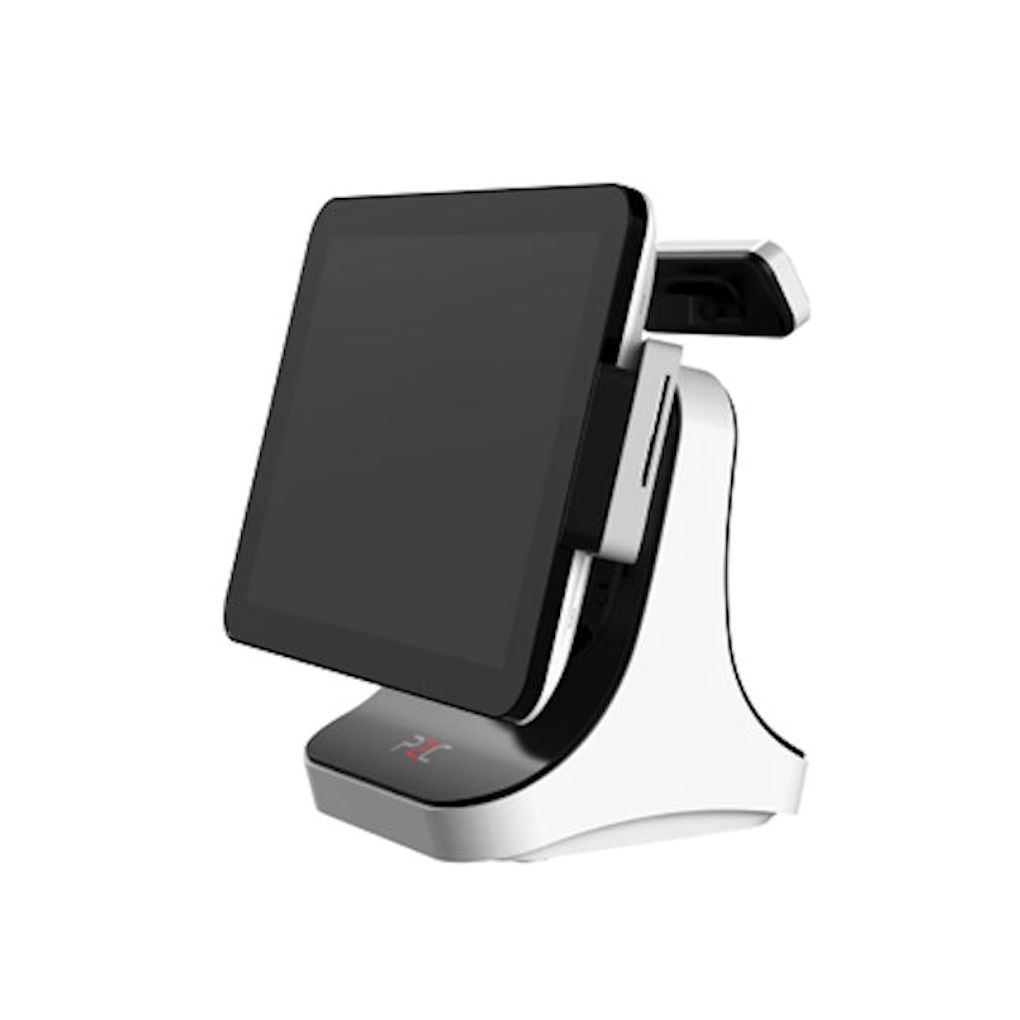

    ICS P2C T-100 Slim & Sleek Style POS System

    Manufacturer: ICS
    ICS P2C T-100 Slim & Sleek Style POS System
    SKU: 09.217.0168
    Availability: In stock
    i h

    Processor                  Intel Celeron™ 1037U

    Chipset                     Intel NM70 Express Chipset


    Storage Device

    2.5" SATA-II SSD 64GB (default) or HDD 320GB (optional)


    Single-Channel DDR3 Connector for 1066/800MHz x 1, default 2GB up to 4GB


     Intel Graphics Media Accelerator 3600

     Intel HD Graphics (350MHz-1GHz)




    POS Ready2009, POS Ready 7

    Main Display

    15" with WLED Backlight (1024 x 768), Single LVDS 24bits
    Supports 5-Wired Resistive Flat or Normal Type Touch Panel
    Supports Tilt (0? ~ 53?)
    10°-60° Viewing Angle, 300:1 Contrast, Above 350cd/m2 Brightness


    1 x 10/100/1000Mbps Base T Ethernet

    Serial Port

    2 x DB9 and 1 x RJ50 Serial Ports,
    Powered on Pin 9 (DC+5V or DC+12V)


    6 x USB A type 2.0, 1 x mini USB B type 2.0

    Special USB

    1 x mini USB type A, B


    D-SUB 15 pin Analog VGA port

    Cash Drawer

    1 x RJ11 (12V) on the Right Rear Side

    Audio Ports

    1 x Mic-in, 1 x Audio-out

    Speaker Out

    1watt Speaker (Stereo) X 2EA

    Expansion Slot


    2nd Display

    10" or 15 with WLED back light (1024 x 768), Single LVDS 24bit or 18bit
    Support 5-wired resistive touch panel (optional)
    Support tilt (15? ~ 45?) and swivel : 25?
    10°-60° Viewing Angle, 300:1 Contrast, 300cd/m2 Brightness

    Customer Display

    VFD Type (20 x 2), Alphabet & Numeric, Supports 15° – 90° Tilt and 25° Swivel

    Touch Panel

    Support 5-wired resistive Flat Touch panel


    ISO7811, All Track
    USB (default) and Serial (CMOS setting) interface
    Bi-Directional reading, min. 1million times reading
    Card reading speed 3inch to 60inch/sec

    Smart Card Reader

    ISO7816 EMV level 1

    Dallas Reader

    Supports PC/SC(Personal Computer/Smart Card)


    354 x 246 x 339 (W x D x H, mm)


    5.5 (Kg)


    White & Black

    Power Supply

    100V AC ~ 240V AC, DC12V-5A Adaptor, 60 watt


    Operating: 0 ~ 40?C, Storage: 0 ~ 60?C


    10 ~ 80% Humidity
