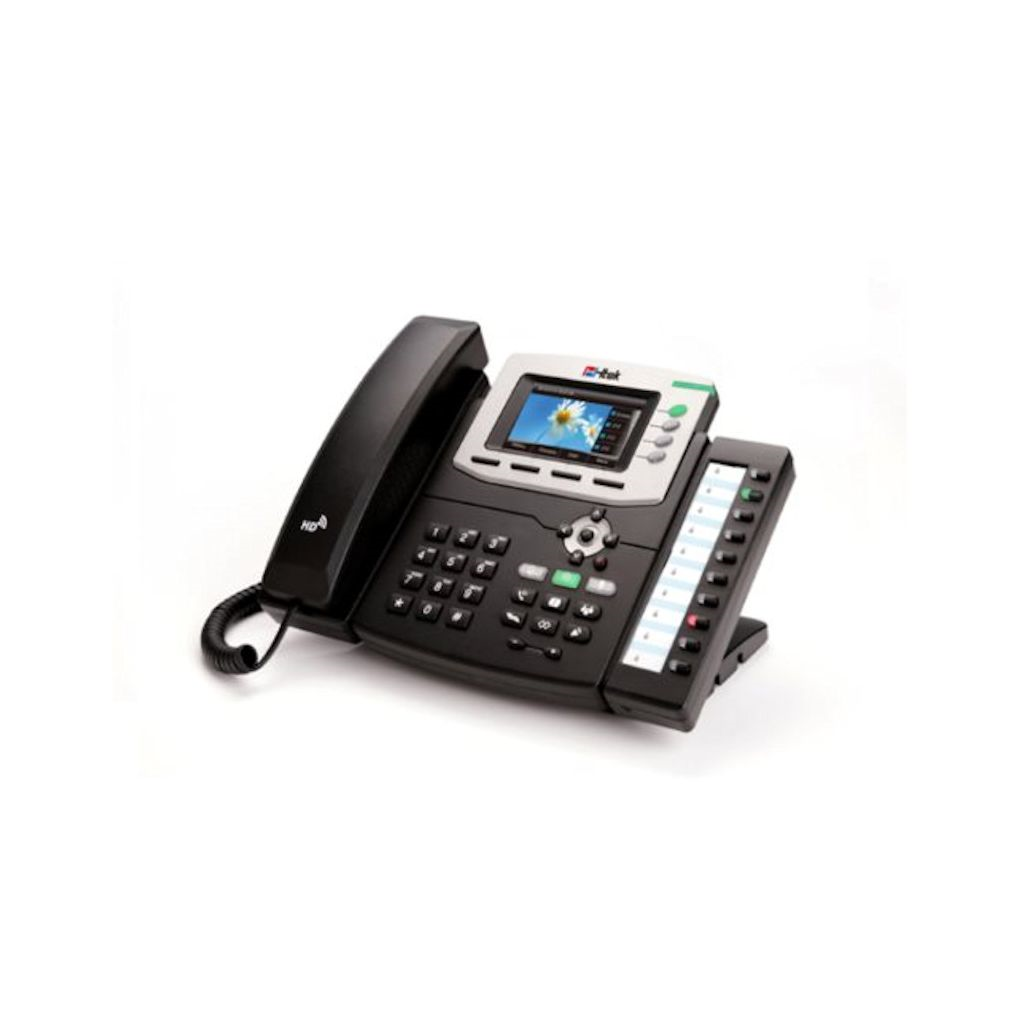

UC862 is an innovative enterprise-level Color IP Phone that features 4 Line keys, 10 programmable extension keys, 3.5” TFT-LCD with 480*320 pixel. It supports up to 5-way conference. UC862 is optimized for executive use for major decision makers, administrative assistants and those working with bandwidth-intensive application on collocated PCs. 10 programmable extension keys could be configured as IP PBX features like BLF, SCA, Intercom, Call Pickup, Call Park and many other features. The high-resolution TFT-LCD and HD Voice bring you the lifelike visual and hearing experience.
Features
- 3.5”TFT-LCD, 480 x 320 pixel, 262K colors
- Dual-port Gigabit Ethernet ports
- 4 VoIP accounts
- Multi-language
- 47 keys including 14 programmable keys
- Support Power over Ethernet(PoE)
- Support Auto-provision via TFTP / FTP / HTTP /HTTPS
Physical Feature
- 3.5”TFT-LCD, 480 x 320 pixel, 262K colors
- Ethernet: Dual-port Gigabit Ethernet ports
- Keys: 47 keys including 14 programmable keys
- WAN Port: 10/100/1000 RJ-45 for Internet
- LAN Port: 10/100/1000 RJ-45 for PC
- Handset: 1 RJ9(4P4C)
- Headset: 1 RJ9(4P4C)
- CPU: 600M
- Adapter output: 5V/1.2A
- Adapter input: 100-240V
- Power consumption: standby - 2.2W / working - 2.4W
- Power over Ethernet(PoE): IEEE 802.3af (Optional)
- Operation temperature: -10 ~ 50?
- Relative Humidity: 10 ~ 95%
- Weight - Phone: 0.74kg
- Dimension: (W*D*H*T): 290*210*125mm
VoIP Protocol
- SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
- RFC 2833 X-NSE Tone Events for SIP/RTP, AVT Tone
- Events for SIP/RTP
Voice Codecs
- HD wideband codec:
- G.722. HD Codec, HD speaker, HD handset
- Full-duplex speakerphone with AEC
- G.711 µ-law/A-law, G.723.1, G.726, G.729A/B.
- DTMF(In-Band, RFC2833, SIP Info)
- Acoustic Echo Cancelation(AEC)
- Acoustic Gain Control(AGC)
- Voice Activity Detection(VAD), Comfort Noise insertion
Security
- HTTPS Server/Client
- Transport Layer Security (TLS)
- SRTP (RFC3711), SIPS
- VLAN QoS (802.1pq)
Telephone Interfaces
- 4 VoIP Accounts
- Menu-driven user interface, XML Idle Screen, Theme
- Screen Sleep
- Call hold, Call waiting, Call forward, Call return
- Redial,Call transfer
- Caller ID display, DND, Auto-answer, 5-Way Conference
- Mute, Speed dial, SMS, Voicemail, Message Waiting
- Indication (MWI) LED, Call history
- BLF/BLA
- Hot-desking, Tone scheme, Volume control
- Ring tone selection/Import/Delete
- Broad and Deep Interoperability
- Soft keys programmable
- Phonebook, Black list XML/LDAP phonebook
Network Protocol
- TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP
- Static/DHCP/PPPoE
- TFTP/DHCP/PPPoE client
HTTP/HTTPS server
