Specifications |
Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A
record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP,
LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
Network Interfaces |
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
Graphic Display |
4.3 inch (480x272) TFT color LCD |
Bluetooth |
Yes, integrated |
Feature Keys |
12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive soft- keys, 5 navigation/menu keys, 11
dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK,
TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE,
VOL+, VOL |
Voice Codecs |
Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), in-band and out-ofband DTMF(in audio, RFC2833, SIP INFO) |
Auxiliary Ports |
RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port |
Telephony Features |
Hold, transfer, forward, 5-way conference, call park, call pickup,
shared-call-appearance (SCA)/bridged-line-appearance(BLA), downloadable
phonebook (XML, LDAP, up to 2000 items), call waiting, call log(up to
500 records), XML customization of screen, off-hook auto dial, auto
answer, click-to-dial, flexible dial plan, hot desking, personalized
music ringtones and music on hold, server redundancy and fail-over |
HD audio |
Yes, HD handset and speakerphone with support for wideband audio |
Extension Module |
Yes, can power up to 4 GXP2200EXT modules which features a 128x384
graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation
keys, and less than 1.2W power consumption per unit |
Base Stand |
Yes, 2 angle positions available, Wall Mountable |
QoS |
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security |
User and administrator level passwords, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, SRTP, TLS,
802.1x media access control |
Multi-language |
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese |
Upgrade/Provisioning |
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file |
Power & Green Energy Efficiency |
Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ; Integrated Power-over-Ethernet (802.3af) Max power consumption: 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs) |
Dimensions |
228mm(W) x 206mm(L) x 46mm(H) |
Temperature and Humidity |
Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
Package Content |

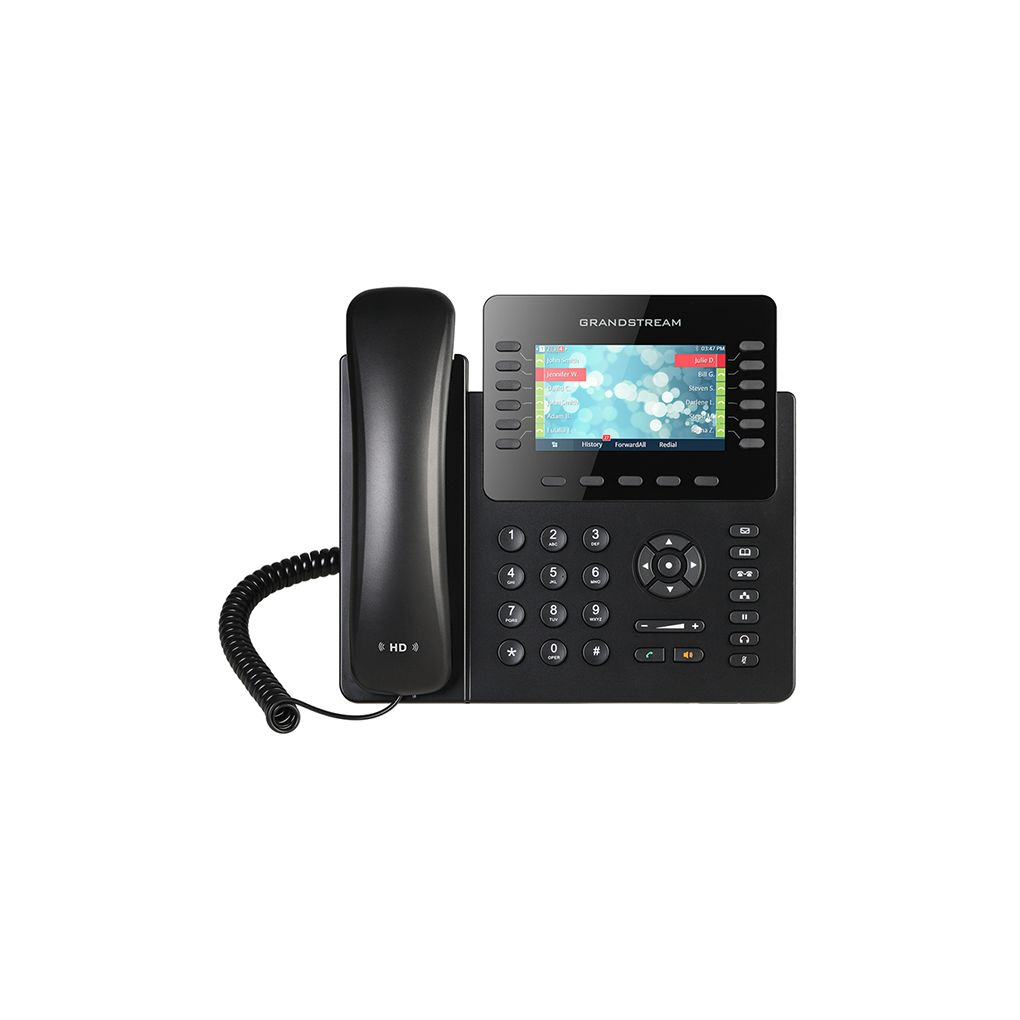

GXP2170 phone, Handset with cord, Base stand, Universal power supply, Network cable, Quick Installation Guide, GPL license |
Compliance |
FCC: Part 15 (CFR 47) Class B CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1 |
