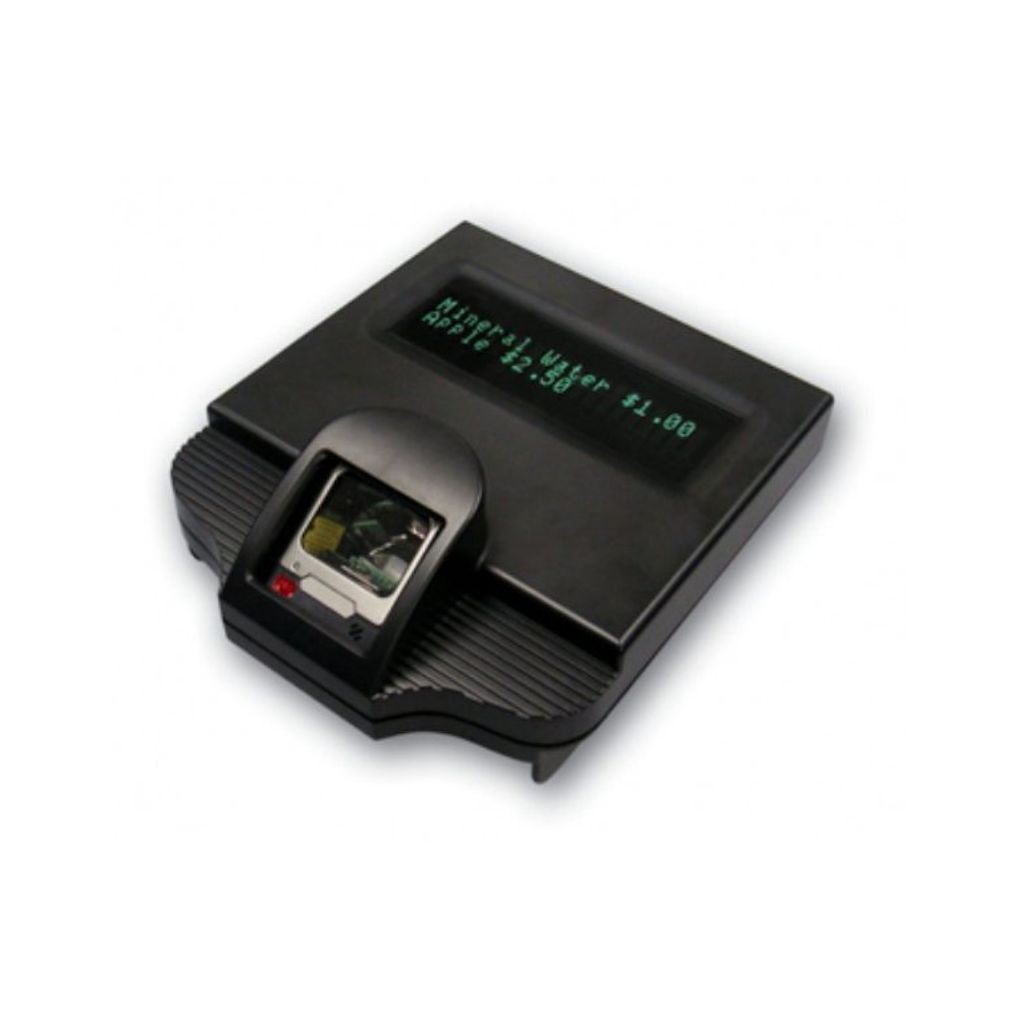

| Model No. | PC-1000 |
| General |
| Display | Vacuum Fluorescent Display |
| Brightness | 700 cd/m2 |
| Number of Columns | 20 x 2 |
| Character Size (mm) | 6.4 x 9.2 (WxH), 5x7 dot matrix |
| Font Character Support | Multiple Font Sets support |
| PLU (Price Look Up) | 224 KB |
| Scanner |
| Scanner Type | Laser Diode |
| Scan Patten | Omni-directional Scan |
| Readable Bar Code Symbologies | UPC/EAN, Code 128, Code 93, Codabar, Interleaved 2 of 5,
Code 11, Code 39, MSI/Plessey, RSS 14 and more (IS3840) |
| Interface & Utility |
| System Interface | RJ-45 x 1, 10/100 Base-T |
| Auxiliary Ports (Reserved) | RS-232 (DB9) x 2,
(with DC+5V power out ) |
| Command Set | ESC/POS Command Compatible |
| Other |
| Power Input | 5VDC/24W (with External Adaptor) |
| Weight | 1.36 Kg |
| Dimension (L x W x H:mm) | 275 x 227 x 74.5
(105.5 with scan module housing) |
